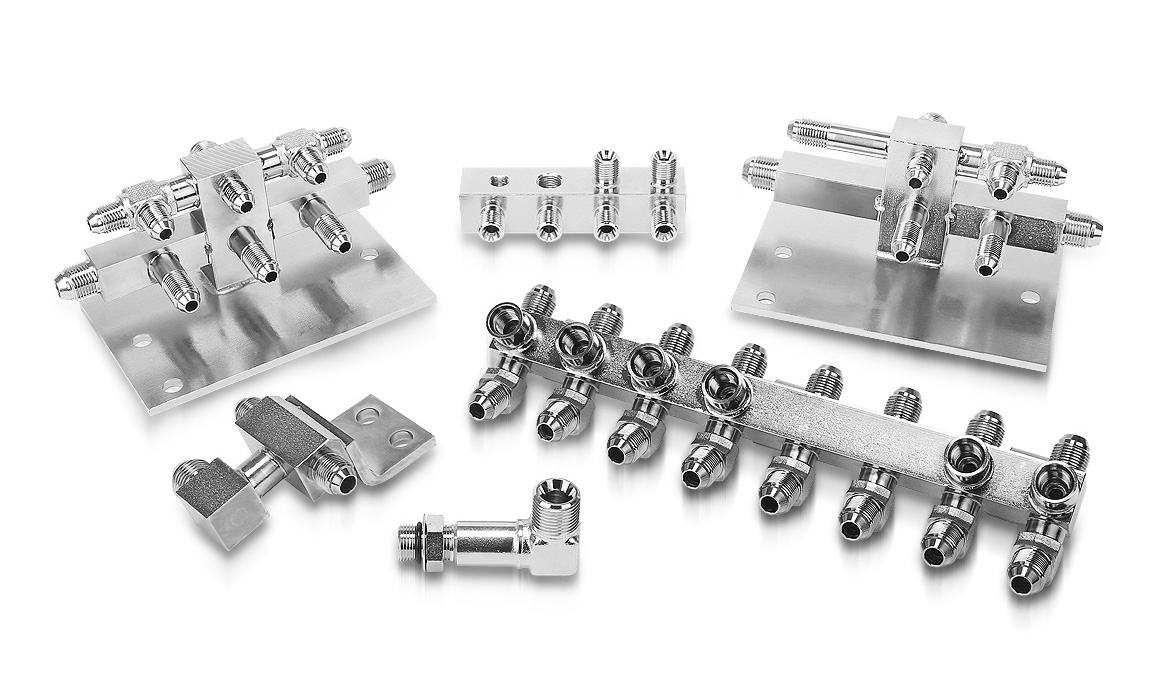

Nipple Brazing
적용분야
Heavy Industrial Unit
Application : KOBELCO -SK10SR, SK17SR, SK20SR, SK30SR CATERPILLAR - 303.5E CR, 304E.CR, 305E.CR, 305.5E CR
사양
| Available Size | 1/4＂~ 1＂ |
| Material | Carbon Steel , Stainless Steel, Brass |
| Brazing | Brass Brazing , Stainless Brazing |
| End style | Threads: UN(F), PT/PF, NPT(F), NPSM, BSPT/BSPP, METRIC
|
| Plating | Corrosion Resistance of SAE J516, ASTM B117
|
• Available Size
1/4＂~ 1＂
• Material
Carbon Steel , Stainless Steel, Brass
• Brazing
Brass Brazing , Stainless Brazing
• End style
Threads: UN(F), PT/PF, NPT(F), NPSM, BSPT/BSPP, METRIC
- JIC 30˚ Flare
- JIS 30˚ Flare / Cone
- ORB
• Plating
Corrosion Resistance of SAE J516, ASTM B117
- Silver Chromium 6 free plating
