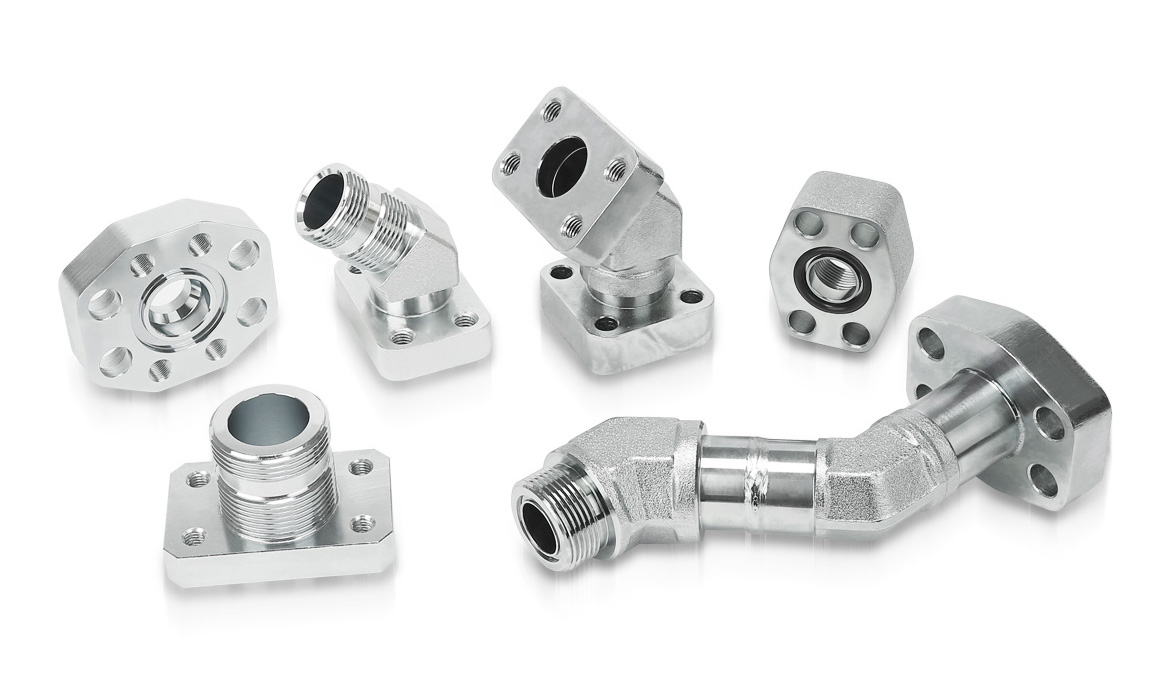

Flange Fitting
적용분야
Hydraulic System
Pneumatic System
사양
| Available Size | 1/4＂~ 2＂ |
| Material | Carbon Steel , Stainless Steel, Brass |
| End style | Threads: UN(F), PT/PF, NPT(F), BSPT/BSPP
|
| Plating | Corrosion Resistance of SAE J516, ASTM B117
|
• Available Size
1/4＂~ 2＂
• Material
Carbon Steel , Stainless Steel, Brass
• End style
Threads: UN(F), PT/PF, NPT(F), BSPT/BSPP
- Swivels, Wire Assembly
- FLANGES (SAE CODE 61, CODE 62)
- JIC 37˚ Flare
- JIS 30˚ Flare / Cone
- DIN 24˚ Flare / Cone (HEAVY/ LIGHT)
- METAL SEAL (BONDED)
- O-ring face sea
- Union available
- No weld, One-piece fitting
• Plating
Corrosion Resistance of SAE J516, ASTM B117
- Silver Chromium 6 free plating
