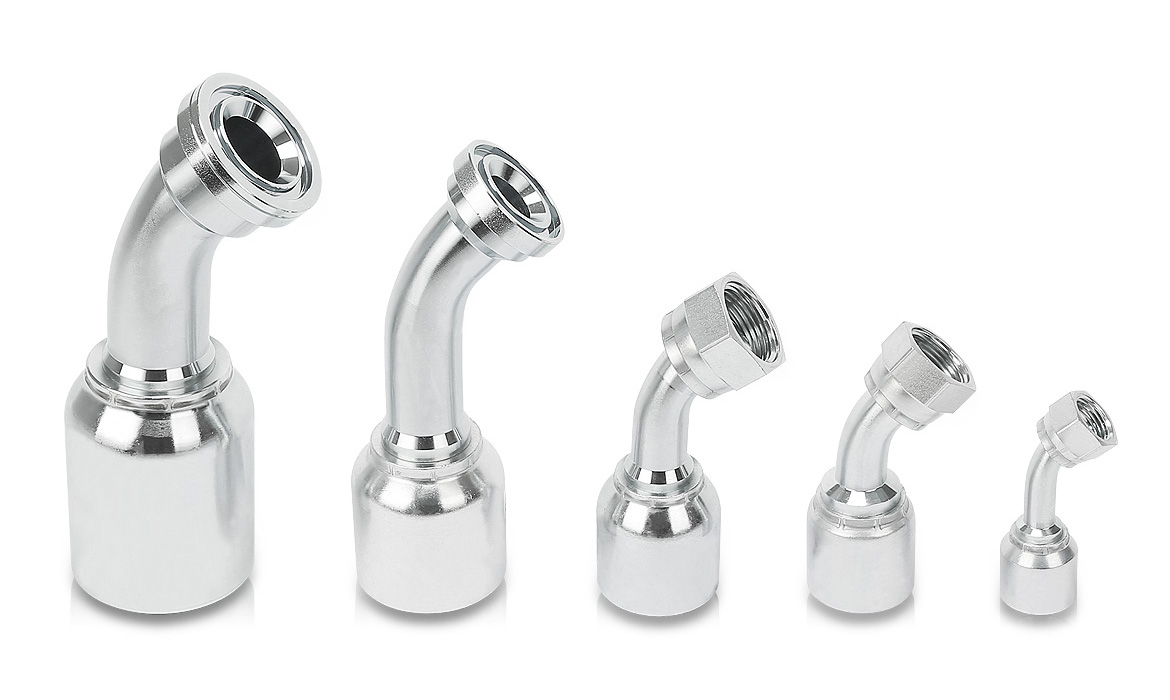

45˚  Elbow Fitting

Multipurpose

適用分野

Hydraulic System

Pneumatic System

Heavy Industrial Unit

仕様

Available Size 1/4"~ 2"
Material Carbon Steel , Stainless Steel, Brass
Drop length Long, Short, Standard
End style Threads: UN(F), PT/PF, NPT(F), NPSM, BSPT/BSPP, METRIC
  • - Swivels, Wire Assembly
  • - FLANGES (SAE CODE 61, CODE 62)
  • - JIC 37˚   Flare / Cone
  • - JIS 30˚   Flare / Cone
  • - DIN 24˚   Flare / Cone (HEAVY/ LIGHT)
  • - METAL SEAL (BONDED)
  • - O-ring face seal
  • - Union available
Plating Corrosion Resistance of SAE J516, ASTM B117
  • - Silver Chromium 6 free plating
•  Available Size

1/4"~ 2"

•  Material

Carbon Steel , Stainless Steel, Brass

•  Drop length

Long, Short, Standard

•  End style

Threads: UN(F), PT/PF, NPT(F), NPSM, BSPT/BSPP, METRIC

- Swivels, Wire Assembly
- FLANGES (SAE CODE 61, CODE 62)
- JIC 37˚   Flare / Cone
- JIS 30˚   Flare / Cone
- DIN 24˚   Flare / Cone (HEAVY/ LIGHT)
- METAL SEAL (BONDED)
- O-ring face seal
- Union available

•  Plating

Corrosion Resistance of SAE J516, ASTM B117

- Silver Chromium 6 free plating
